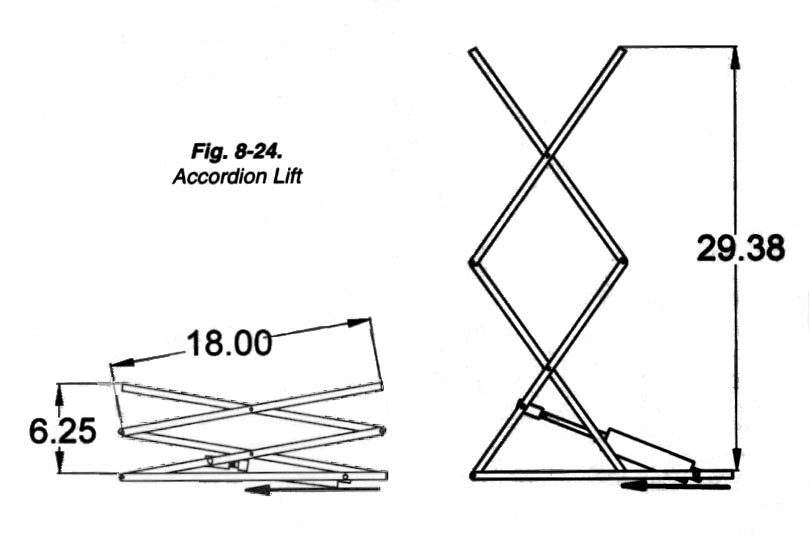

The following figures are taken from Edwin Wise's "Animatronics: A Guide to Animated Holiday Displays", Prompt Publications, Sams Technical Publishing. Figure 8-24 depicts an accordion linkage.

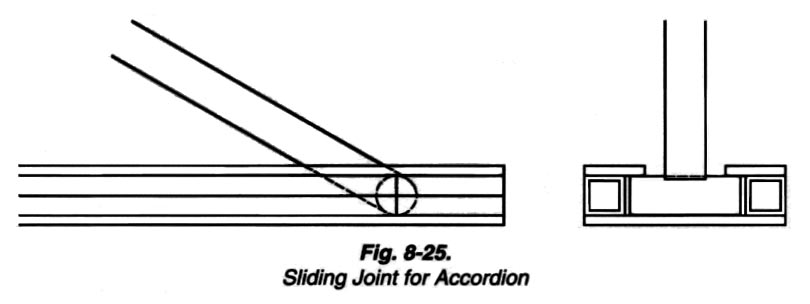

The accordion linkage requires a sliding joint at the base and at the opposite end. Figure 8-25 depicts Edwin's proposed design for the sliding joint.
